Working Process

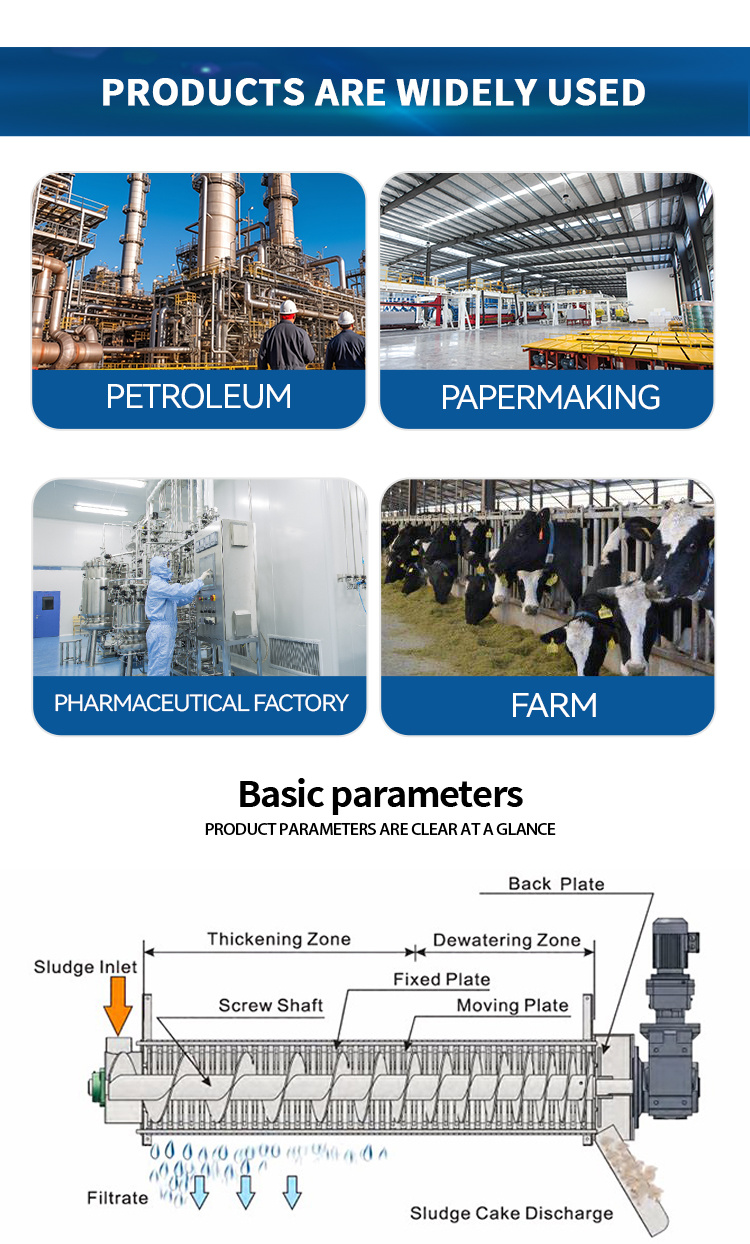

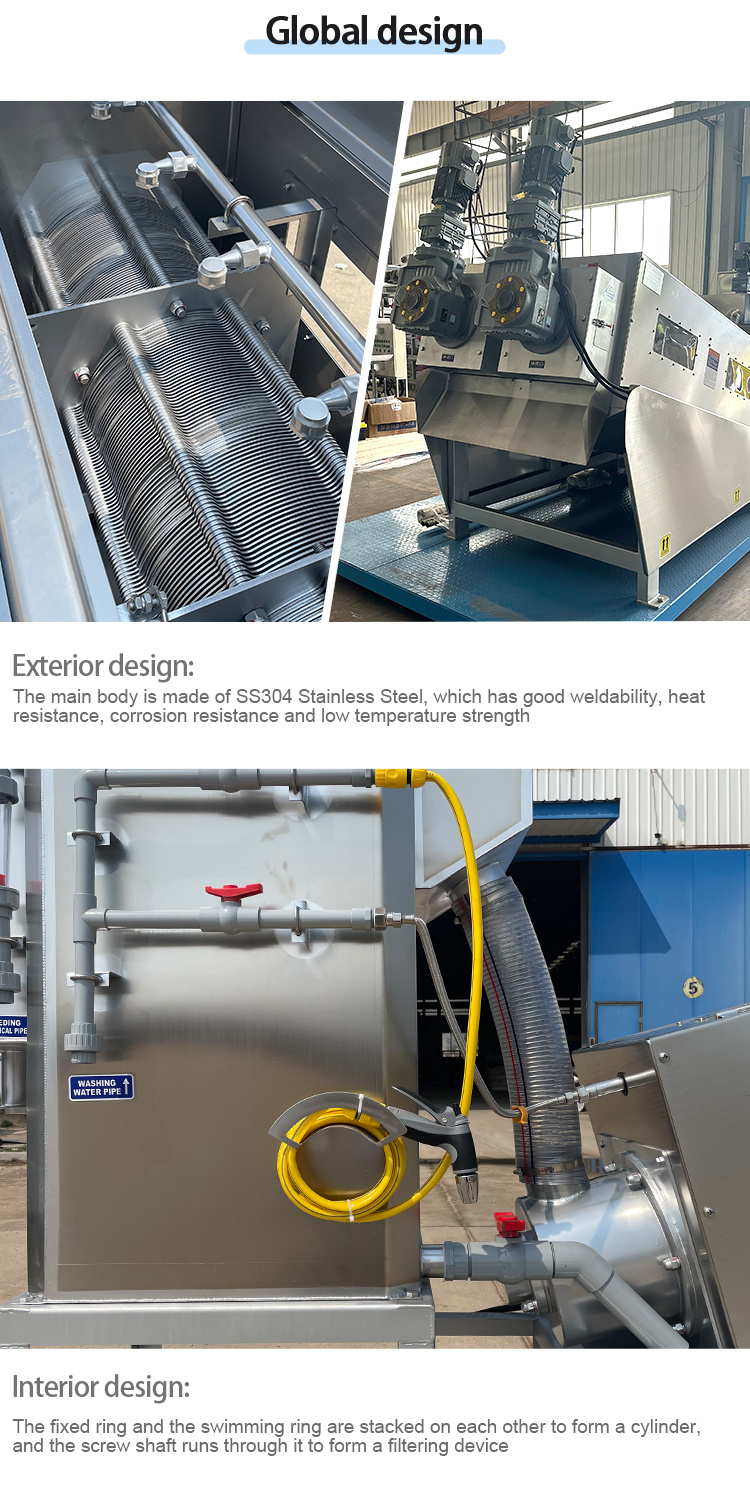

1.Through the sludge delivery pump, the sludge is transported to the sludge deliveryoort2. The sludge is transported to the flocculation mixing tank after adjusting the flowrate through the metering tank, and the sludge is fully stirred and mixed by the mixer3. After fully stirring through the mixer to form a large alum flower, it is sent into themain body of the stacking screw4. The alum flower sent into the concentration part is concentrated by gravity whilemoving to the direction of the dehydration part5. The gap between the swimming ring and the fixed ring of the dehydration part be-comes narrow, and the dehydration is further pressurized by adjusting the backpressure plate located at the exhaust outlet, and finally the mud cake is discharged
Product features
1.Low power, high torque, low speed operation, less failure2.Exquisite processing technology, low cost3.Small footprint,high degree of automation4.Supply OEM service ,1 year spare for free.
